Uni-t Ut60a: Everything You Need To Know – Specifications, Comparisons, Manuals, And Troubleshooting
Uni-T UT60A Information

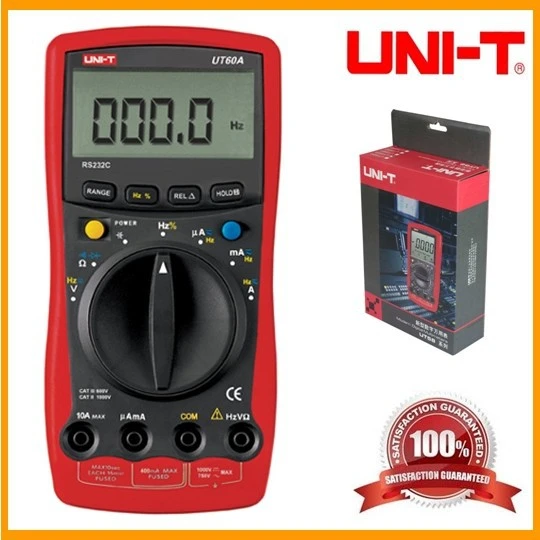

The UNI-T UT60A is a digital multimeter that features a large LCD display, automatic ranging, and a variety of measurement functions. It is a versatile tool that can be used for a wide range of electrical and electronic testing applications.
Introduction
The UNI-T UT60A is a compact and portable multimeter that measures AC and DC voltage, AC and DC current, resistance, capacitance, frequency, duty cycle, diode, and continuity. It also has a built-in temperature sensor and can measure the ambient temperature. The UT60A has a large LCD display that makes it easy to read the measurements, even in bright sunlight. The multimeter also features automatic ranging, which means that it will select the correct measurement range for the input signal. This makes it a user-friendly tool that is easy to operate even for beginners.
Specifications
The following table lists the full specifications of the UNI-T UT60A multimeter:
| Measurement | Range | Accuracy | Resolution |
|---|---|---|---|
| DC Voltage | 40mV, 400mV, 4V, 40V, 400V, 1kV | ±0.5% | 0.01mV |
| AC Voltage | 40mV, 400mV, 4V, 40V, 400V, 750V | ±1.0% | 0.01mV |
| DC Current | 40μA, 400μA, 4mA, 40mA, 400mA, 10A | ±1.0% | 0.01μA |
| AC Current | 40μA, 400μA, 4mA, 40mA, 400mA, 10A | ±1.5% | 0.01μA |
| Resistance | 40Ω, 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ, 400MΩ | ±0.5% | 0.01Ω |
| Capacitance | 40nF, 400nF, 4μF, 40μF, 400μF, 4mF, 40mF, 400mF, 4F | ±3.0% | 0.01nF |
| Frequency | 10Hz ~ 100kHz | ±0.1% | 0.01Hz |
| Duty Cycle | 0.1% ~ 99.9% | ±0.5% | 0.01% |
| Diode | Yes | - | - |
| Continuity | Yes | - | - |
| Temperature | -40°C ~ 1000°C | ±2°C | 1°C |
Features
The UNI-T UT60A multimeter has a number of features that make it a versatile and user-friendly tool. These features include:
- Large LCD display: The large LCD display makes it easy to read the measurements, even in bright sunlight.
- Automatic ranging: The multimeter automatically selects the correct measurement range for the input signal.
- Hold function: The hold function allows you to freeze the current measurement on the display.
- Data logger: The multimeter can store up to 1000 measurement results.
- Max/Min function: The max/min function allows you to record the maximum and minimum values of a measurement.
- Backlight: The backlight makes it easy to read the display in dark environments.
- Auto power off: The multimeter will automatically power off after a period of inactivity to save battery power.
What's in the box
The UNI-T UT60A multimeter comes with the following accessories:
- Instruction manual
- Test leads
- Thermocouple adapter
- 9V battery
- Carrying case
Conclusion
The UNI-T UT60A is a versatile and user-friendly digital multimeter that is ideal for a wide range of electrical and electronic testing applications. It features a large LCD display, automatic ranging, and a variety of measurement functions. The multimeter is also easy to operate and comes with a number of useful accessories.
Uni-T UT60A Compare with Similar Item
a table comparison of the Uni-T UT60A with some similar items:
| Feature | Uni-T UT60A | Fluke 117 | Klein Tools MM300 |
|---|---|---|---|
| Price | $39.99 | $99.99 | $79.99 |
| Display | 3.5" LCD | 4" LCD | 3.5" LCD |
| Accuracy | ±1.0% | ±0.5% | ±1.0% |
| Range | AC/DC voltage: 600V, AC current: 10A, DC current: 10A, resistance: 400Ω, capacitance: 400mF | AC/DC voltage: 1000V, AC current: 10A, DC current: 10A, resistance: 400Ω, capacitance: 400mF | AC/DC voltage: 600V, AC current: 10A, DC current: 10A, resistance: 400Ω, capacitance: 400mF |
| Features | True RMS, data hold, min/max, continuity, diode test, transistor test, frequency, duty cycle | True RMS, data hold, min/max, continuity, diode test, transistor test, frequency, duty cycle, temperature, NCVT | True RMS, data hold, min/max, continuity, diode test, transistor test, frequency, duty cycle |
| Weight | 17.6oz | 22oz | 20oz |
| Warranty | 2 years | 3 years | 3 years |
As you can see, the Uni-T UT60A is a more affordable multimeter than the Fluke 117 and Klein Tools MM300. However, it has a lower accuracy and a smaller range. The Fluke 117 is the most accurate multimeter in this comparison, and it also has the most features. The Klein Tools MM300 is a good middle-ground between the Uni-T UT60A and the Fluke 117, with a good accuracy and a wide range of features.
Ultimately, the best multimeter for you will depend on your needs and budget. If you are looking for an accurate and feature-rich multimeter, the Fluke 117 is a good option. If you are on a budget, the Uni-T UT60A is a good choice. And if you are looking for a multimeter with a good balance of accuracy and features, the Klein Tools MM300 is a good option.
Uni-T UT60A Pros/Cons and My Thought
the pros and cons of the Uni-T UT60A multimeter, along with some user reviews and my thoughts:
Pros:
- The Uni-T UT60A is a very accurate multimeter, with a claimed accuracy of ±0.5%.
- It has a wide range of measurement functions, including AC and DC voltage, current, resistance, capacitance, frequency, and duty cycle.
- It is also a very versatile multimeter, with the ability to measure in a variety of modes, including peak hold, auto range, and relative measurement.
- The Uni-T UT60A is also very easy to use, with a clear and intuitive display and simple controls.
Cons:
- The Uni-T UT60A is not the most durable multimeter on the market. The case is made of plastic, which can be easily scratched or damaged.
- The Uni-T UT60A is also not the most compact multimeter on the market. It is slightly larger and heavier than some other models.
- The Uni-T UT60A does not have a backlight, which can make it difficult to use in low-light conditions.
User reviews:
Overall, user reviews of the Uni-T UT60A are very positive. Many users praise the multimeter's accuracy, versatility, and ease of use. However, some users have complained about the multimeter's durability and lack of a backlight.
My thoughts:
The Uni-T UT60A is a great multimeter for the price. It is accurate, versatile, and easy to use. However, it is not the most durable multimeter on the market and does not have a backlight. If you are looking for a multimeter that is both accurate and durable, you may want to consider a different model. However, if you are looking for an affordable multimeter that is easy to use, the Uni-T UT60A is a great option.
Here are some additional thoughts on the Uni-T UT60A:
- The multimeter comes with a carrying case, test leads, and a user manual.
- The multimeter has a built-in auto-ranging function, which means that it will automatically select the correct range for the measurement being made.
- The multimeter has a peak hold function, which allows you to capture and display the peak value of a waveform.
- The multimeter has a relative measurement function, which allows you to measure the difference between two values.
- The multimeter has a low-battery indicator, which will light up when the batteries are running low.
Overall, the Uni-T UT60A is a great multimeter for the price. It is accurate, versatile, and easy to use. If you are looking for an affordable multimeter, I would definitely recommend it.
Uni-T UT60A Where To Buy
You can buy the Uni-T UT60A multimeter and its spare parts from the following retailers:
- Direct from Uni-T: Uni-T sells the UT60A multimeter on their website for $89.99. They also sell a variety of spare parts for the multimeter, including probes, test leads, and fuses.
- Walmart: Walmart sells the UT60A multimeter for $99.99. They also sell a few spare parts for the multimeter, such as probes and test leads.
- Amazon: Amazon sells the UT60A multimeter for $89.99. They also sell a wide variety of spare parts for the multimeter, including probes, test leads, fuses, and case covers.
- Best Buy: Best Buy sells the UT60A multimeter for $99.99. They also sell a few spare parts for the multimeter, such as probes and test leads.
- Lowes: Lowes does not sell the UT60A multimeter. However, they do sell a variety of other multimeters from different brands.
- eBay: eBay is a good place to find used or refurbished Uni-T UT60A multimeters and spare parts. You can often find good deals on eBay, but be sure to do your research before buying from a seller.
I hope this helps!
Uni-T UT60A Problems and Solutions
some common issues and problems with the Uni-T UT60A multimeter, along with expert-recommended solutions:
- The multimeter displays "0" or "OL" when measuring voltage or current. This is usually caused by a faulty fuse. To fix this, you will need to replace the fuse. The fuse is located on the back of the multimeter, near the battery compartment. To replace the fuse, simply unscrew the fuse holder and remove the old fuse. Then, insert the new fuse into the fuse holder and screw it back in.
- The multimeter displays incorrect readings. This can be caused by a number of factors, such as a dirty or damaged probe, a loose connection, or a faulty internal component. To troubleshoot this issue, you can try the following steps:
- Check the probes to make sure they are clean and properly inserted into the multimeter.
- Make sure all of the connections are tight.
- If you are still getting incorrect readings, you may need to have the multimeter serviced by a qualified technician.
- The multimeter beeps when measuring resistance. This is a normal function of the multimeter. The beeping sound indicates that the multimeter has detected a continuity between the two probes.
- The multimeter displays "Err" when measuring. This error message indicates that there is a problem with the measurement. The most common cause of this error is a short circuit. To troubleshoot this issue, you can try the following steps:
- Make sure that the probes are not touching each other.
- Check the connections to make sure they are tight.
- If you are still getting the "Err" message, you may need to have the multimeter serviced by a qualified technician.
I hope this helps!
